R.M. Young has created this barometric pressure sensor that allows a reliable measurement of atmospheric pressure. It is possible to calculate the QFE and QNH pressures and to adjust measure range

NetPilote création de site internet comité d'entreprise experts en sites dynamiques.

vendredi 27 janvier 2023

Barometric pression sensors

Pour fermer, cliquez ici
Description

Description

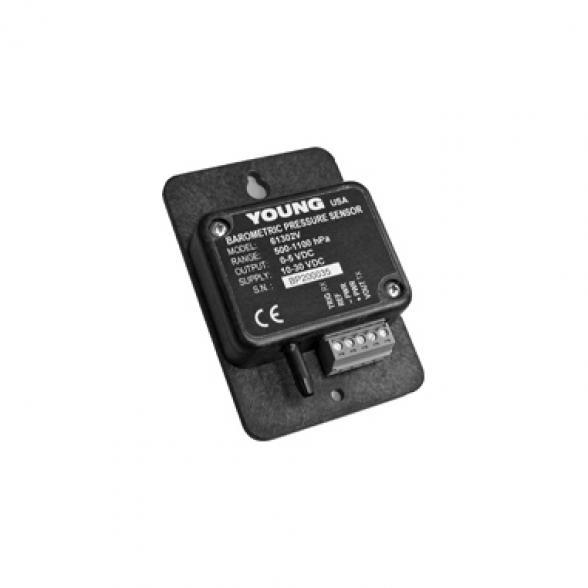

The main advantages of RM YOUNG digital barometers are performance, miniaturization and simplicity. In their tight case, these totally customizable instruments allow a reliable measure of the atmospheric pressure. Among the available options, we can quote the calculation of QFE and QNH pressures, or adjustment of measure range.

Product Code

Ref : 61302V & 61302L
Brand : R.M. YOUNG

Specifications

Pressure range 500-1100 hPa
Operating temperature -40 to + 60 °C
Digital accurac * 0,2hPa (25°C)
0,3 hPa (-40 to + 60°C)
Précision analogique ** 0,05% of analog pressure range
Analog temperature dependence 0,0017% of analog pressure range/°C (25°C reference)
Long term stability 0.2% FS per year
Update rate 1,8 Hz max
Analog output 0 à 5000 mV (Model 61302V)
4 à 20 mA (Model 61302L)
Resolution Analog 0.025% of scale
Serial 0.01 hPa
Power Model 61302V (7 à 30 Vcc)
  • Vout Mode = 2,8 mA
  • Sleep Mode = 1,4 µA
  • RS232 Mode = 7 mA
Model 61302L (7 à 30 Vcc)
  • 4 à 20 mA = 25 mA max Mode
  • RS-232 ou RS-485 = 7 mA
Dimensions 90 mm x 60 mm x 20 mm
Weight 44 g

* Defined as +/- 1 standard deviation from NIST traceable pressure reference. Includes non-linearity,  hysteresis, repeatability, and calibration uncertainty.

** Defined as +/- 1 standard deviation from ideal analog output. Total analog output accuracy is the root   sum square of digital accuracy, analog accuracy, and analog temperature dependence.
